<------------------ SOLD ------------------> Stronglight 651 bottom bracket - steel spindle - 118 mm - English (NOS)

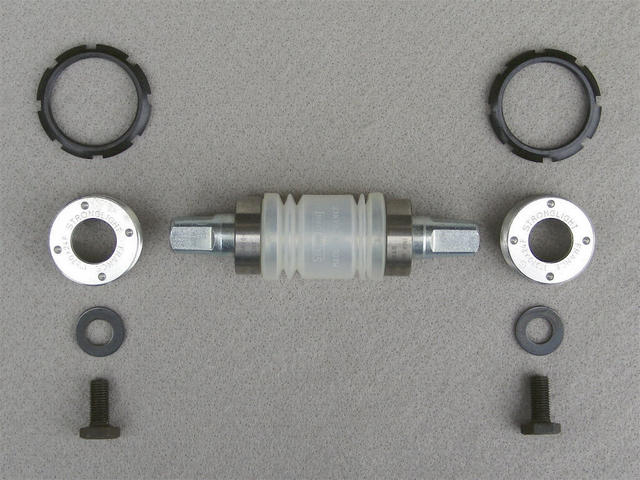

Stronglight bottom bracket - traditional non-cartridge adjustable type for 68 mm shell - alloyed steel rifled spindle - square taper - 118.5 mm width with 2 mm drive side asymmetrical offset - SKF 61903 RS1 annular sealed bearings - 1.370” x 24 TPI English threaded aluminum alloy cups (drive side adjustable / non-drive side adjustable) - Black anodized aluminum alloy lock rings - "accordion" style plastic dust sleeve - model 651 : Stronglight crank bolts and washers - M8 x 1.00 x 20 mm crank bolts with 14 mm head / M8 flat washers - Black oxide finish - steel - model 59 (bolt) / 60 (washer) ... [NOS without packaging - 1980’s model with twin adjustable cups which allows one to optimize their chain line - one can easily remove the Black anodized coating on the lock rings should they prefer a more traditional Silver colored aesthetic - rare to find an English threaded example]

Date: 10/18/2011
